P-Type^®Standard with Flextreme™ Cushions

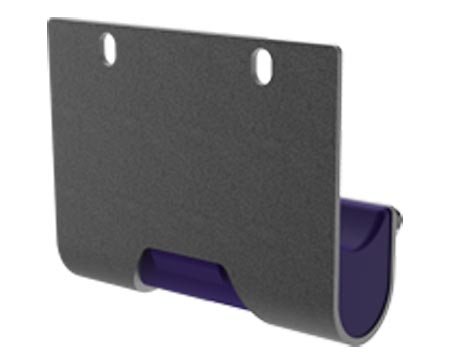

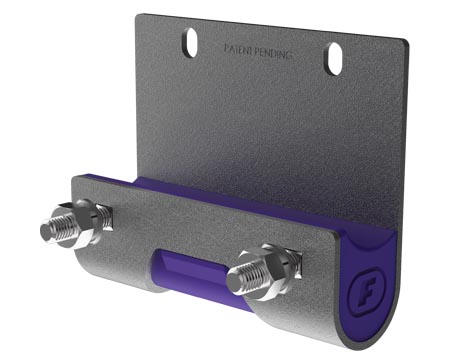

The Flextreme™ Secondary Cushion (PXTC) is the ideal cleaner cushion to pair with aggressive high-speed belts. The polyurethane cushion is encased in stainless steel, removing any chance of delamination; resulting in increased longevity.

Specifications

• Maximum Belt Speed:
  • C-Tip: 1000 fpm (5.0 m/sec)
  • V-Tip: 1200 fpm (6.0 m/sec)
• Temperature Rating: -30°F to 180°F (-35°C to 82°C)
• Usable Blade Wear Length: 3/8" (9 mm)
• Blade Materials:
  • C-Tip: Impact Resistant Tungsten Carbide (works with mechanical fasteners)
  • V-Tip: Long Life Tungsten Carbide (for vulcanized belts only)
• Pole Diameter: 2-3/8" (60 mm)
• Available for Belt Widths: 18" to 72" (450 to 1800 mm)

Installation

• Pole Length:
  • Cleaner size up to 48" (1200 mm): Belt width plus 30" (750 mm)
  • Cleaner size 54" and up (1350 mm): Belt width plus 34" (850 mm)
  • For longer requirements, see Pole Extenders under Belt Cleaner Accessories.
• Horizontal clearance required: 4" (100 mm)
• Vertical clearance required: 8" (200 mm)
